Submersible pumps

Includes a full line of electric submersible pumps designed for exceptional structural quality, high flow, and minimal maintenance.

See all spec sheets

Submersible hydraulic

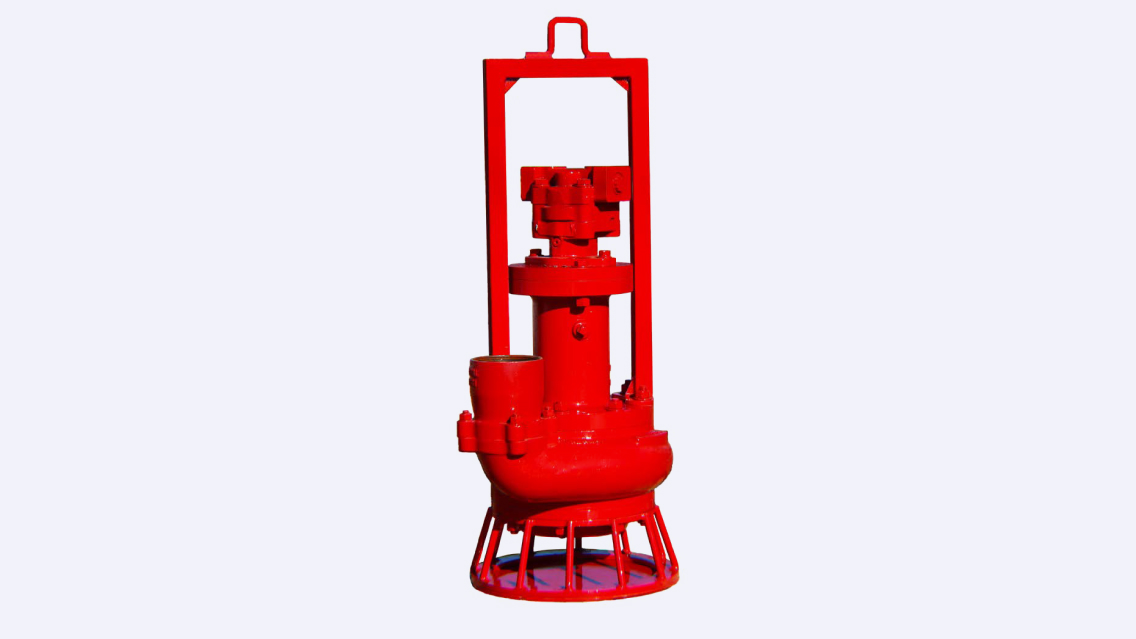

Standard trash hydraulic submersible pumps are specifically designed to effectively handle a wide range of liquids from water to sewage and sludge that can contain solids and other material. Specifically for portable applications, the trash hydraulic submersible pumps are designed to be powered by a hydraulic power pack or compatible power source.

Model Size Max Speed Max Flow Max Head Downloads
inches mm RPM gpm m3/h ft m
4GSTHY 4 101 2300 1010 229 78 24 4GSTHY
6GSTHY 6 152 2155 2136 485 108 32.9 6GSTHY
8GSTHY 8 203 2155 2136 485 108 32.9

Submersible high pressure dewatering

Available in models from 3 to 8 inches and 5 to 35 hp, our submersible high pressure dewatering pumps can achieve max heads of 270 fet and 1650 gpm.

Model Size Power Max Flow Max Head Downloads
inches mm hP kW gpm m3/h ft m
3GSUBHD5 3 75 5 3.7 125 28 170 52 3GSUBHD5
4GSUBHD10 4 100 10 7.5 350 80 165 50 4GSUBHD10
4GSUBHD75 4 100 7.5 5.5 300 68 165 50 4GSUBHD75
6GSUBHD16 6 150 16 12 300 38 260 79 6GSUBHD16
6GSUBHD25 6 150 25 19 575 130 250 76 6GSUBHD25
8GSUBHD35 8 200 35 26 600 136 270 82 8GSUBHD35

Submersible high volume dewatering

Available in models from 3 to 8 inches and 5 to 58 hp, our submersible high volume dewatering pumps can achieve max heads of 220 feet and 2250 gpm.

Model Size Power Max Flow Max Head Downloads
inches mm hP kW gpm m3/h ft m
3GSUBSD5 3 75 5 3/7 400 91 78 24 3GSUBSD5
4GSUBSD5 4 100 5 3.7 570 129 47.5 14 4GSUBSD5
4GSUBSD10 4 100 10 7.5 840 191 98 30 4GSUBSD10
4GSUBSD75 4 100 7.5 5.5 650 148 90 27 4GSUBSD75
6GSUBSD16 6 150 16 12 1200 273 115 35 6GSUBSD16
6GSUBSD25 6 150 25 19 1700 386 125 38 6GSUBSD25
8GSUBSD35 8 200 35 26 1950 443 145 44 8GSUBSD35
8GSUBSD50 8 200 58 43 2250 511 152 46 8GSUBSD50

Submersible trash

Available in models from 4 to 8 inches and 6 to 35 hp, our submersible trash pumps can achieve max heads of 77 feet and 2500 gpm.

Model Size Power Max Flow Max Head Downloads
inches mm hP kW gpm m3/h ft m
4GSUBST6 4 100 6 4.5 715 162 64 20 4GSUBST6
4GSUBST10 4 100 10 7.5 1010 230 60 18 4GSUBST10
4GSUBHT11 4 100 11 8 1020 232 77 23 4GSUBHT11
6GSUBST11 6 150 11 8.2 1360 309 64 20 6GSUBST11
6GSUBST15 6 150 15 11 1360 327 76 23 6GSUBST15
6GSUBST25 6 150 25 19 1560 354 77 24 6GSUBST25
8GSUBST35 8 203 35 26 2500 568 75 23 8GSUBST35

Submersible dredging/slurries/solids

Global Pump dragflow heavy duty submersible agitator pumps are designed for handling slurries with a high content of abrasive solids. The pumps have been extremely successful for clients operating in specialized sectors who face severe conditions and difficult applications including dredging in the marine and energy sectors as well as in mining for minerals and other materials. Handling slurries with up to 70% solids content and specific gravity up to 1.7, with a capacity of up to 5300 gpm at 275 feet of head.

Download spec sheet
